Self-Prime Pumps

MCSU Series

MCSU series pumps are designed for economical, trouble-free operation, the superior solids handling capabilities of the pump make it ideally suited for a variety of applications including solids-laden liquids and slurries. The impeller, seal, wears plate and flap valve can all be accessed through the cover plate opening for inspection or service. Atmospheric barrier along with a lip seal provide additional protection of bearings, also allows external monitoring. Mechanical cartridge seal is specifically designed for abrasive and or trash handling service. The entire rotating assembly can be removed without disturbing pump volute or piping.


Applications

  • Municipal
  • Marine
  • Industrial sewage water treatment
  • Agricultural Irrigation

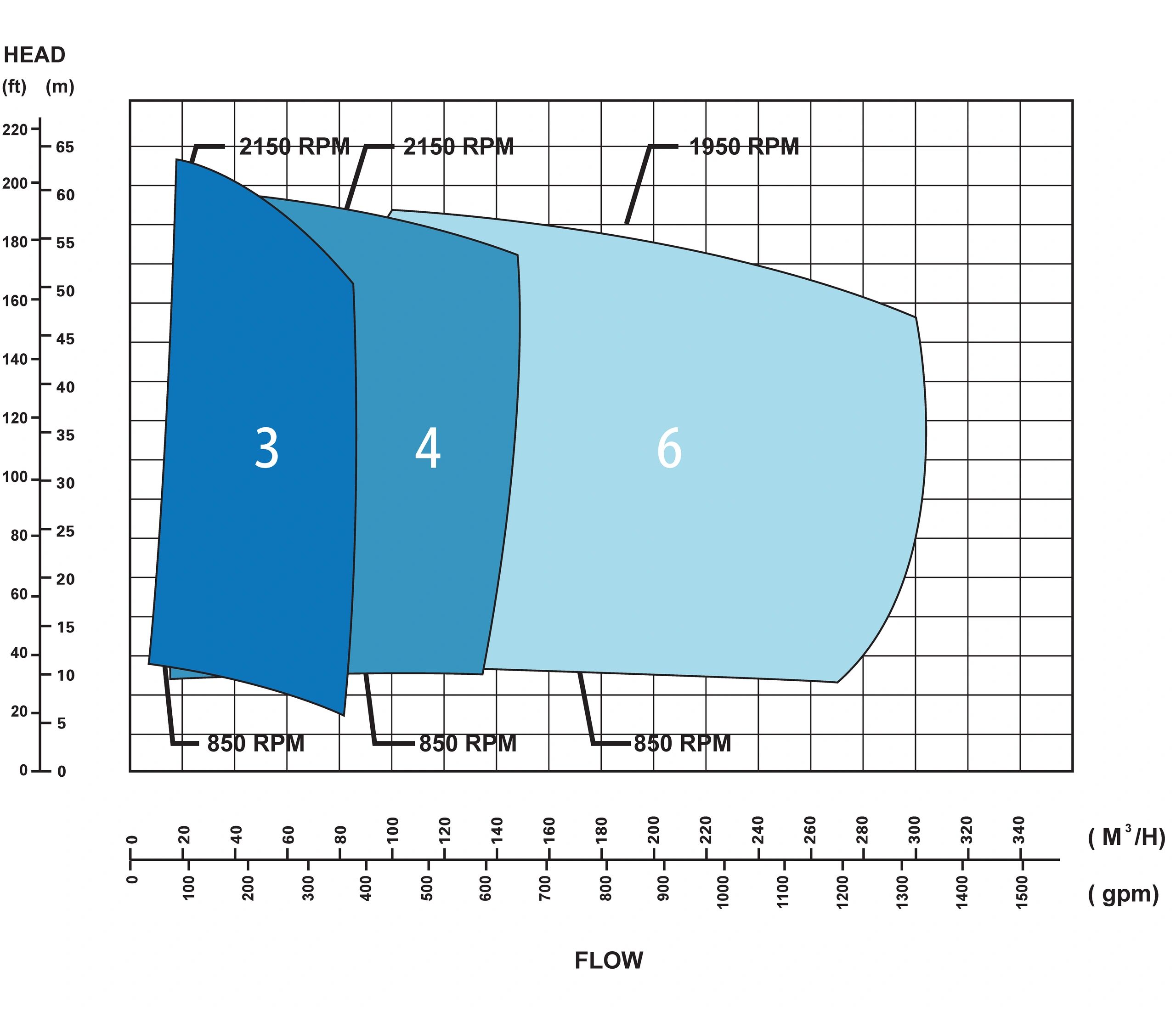

 Tech Data

  • Dis.charge Size: 2"-12"
  • Capacity: Max 5300 GPM
  • Head: Max 115 ft
  • Media Temp: 14 to 185°F
  • System Pressure: Max 3.5 BAR
  • Suction: Max 25 ft
  • Solids: Max 3"


Downloads

MCSU SPECS (pdf)Download
MCSU-3 PARTS LIST (pdf)Download
MCSU-4 PARTS LIST (pdf)Download
MCSU-6 PARTS LIST (pdf)Download
